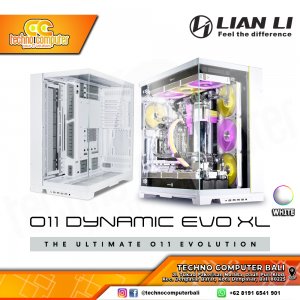

PRODUCT NAME
- O11D EVO XL

CASE TYPE
- Tower Chassis

MODEL
- O11DEXL-X
- O11DEXL-W

COLOR
- Black
- White

DIMENSIONS
- (D) 522mm x (W) 304mm x (H) 531.9mm

MATERIAL
- Steel
- 4.0mm Tempered Glass
- Aluminum

MOTHERBOARD SUPPORT
- E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX

EXPANSION SLOT
- 8

STORAGE
- Behind MB Tray: 3 x 2.5” SSD
- Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD

GPU LENGTH CLEARANCE
- 460mm (Max.)

CPU COOLER HEIGHT CLEARANCE
- 167mm (Max.)

PSU
- ATX (Under 220mm)

FAN SUPPORT
- Top: 3 x 120mm / 3 x 140mm
- Side: 3 x 120mm / 3 x 140mm
- Bottom: 3 x 120mm / 3 x 140mm
- Rear: Up to 2x 120mm

RADIATOR SUPPORT
- Top: 360 / 420 / 240 / 280mm
- Side: 360 / 420 / 240 / 280mm
- Bottom: 360 / 420 / 240 / 280mm

I/O PORTS
- 1 x Power Button
- 1 x Reset Button
- 4 x USB 3.0
- 1 x USB Type C
- 1 x Audio
- 1 x LED Color Button
- 1 x LED Mode Button

DUST FILTERS
- 1 x Bottom 1 x Top
- 2 x Side
