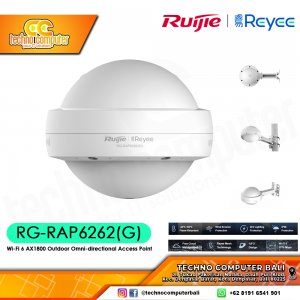

RG-RAP6262(G) Wi-Fi 6 AX1800 Outdoor Omni-directional Access Point

Ruijie RG-RAP6262(G) , Wi-Fi 6 Outdoor Access Point

RG-RAP6262(G) is a high-power outdoor omnidirectional dual-band access point provided by Ruijie Reyee for the scenarios such as villages, villas, parks, scenic spots, and squares. It supports 802.11a/b/g/n/ac/ax. The product can simultaneously work in the 2.4 GHz and 5 GHz frequency bands, support dual-band dual-stream MU-MIMO, and provide 2.4 GHz 574 Mbps and 5 GHz 1201 Mbps. The entire device provides a maximum of 1775 Mbps access rate, and is equipped with built-in omnidirectional high-gain antennas, which meet the coverage requirement.

Wi-Fi Standards :
Wi-Fi6 (IEEE 802.11ax)
Wi-Fi5 (IEEE 802.11ac Wave2)
Wi-Fi4(IEEE 802.11n)

RF Design :
2.4 GHz, 2×2, MU-MIMO
5 GHz, 2×2, MU-MIMO

Max. Wi-Fi Speed :
2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps

Antenna Omnidirectional Gain :
2.4 GHz: 3 dBi
5 GHz: 5 dBi

Fixed Ports :
2×10/100/1000 Base-T

Max. Clients :
256, 64(2.4GHz) or 256(Total)

Recommended Clients :
100

11AX Terminal: 16(2.4GHz) + 84(5GHz)
11AC Terminal: 16(2.4GHz)+64(5GHz)

Max. SSIDs :
8

Recommended Wi-Fi Coverage Radius :
2.4G 50m, 5G 150m

Max. Wi-Fi Coverage Radius :
2.4G 100m, 5G 300m

Power Supplies :
IEEE 802.3at PoE
DC 12V/1.5A

Dimensions (W x D x H) :
200mm × 220mm × 166mm(Without Mounting Bracket)
