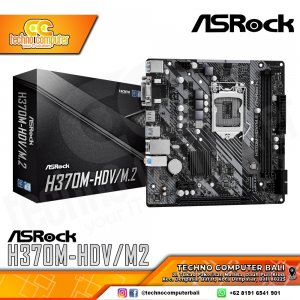

Supports 9th and 8th Gen Intel Core Processors (LGA1151)
4 Power Phase
Supports DDR4 2666
1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DVI-D, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN
Supports ASRock Auto Driver Installer

Chipset - Intel H370
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 64GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Graphics
- 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
- 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920x1200) 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

Form Factor
- Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm
