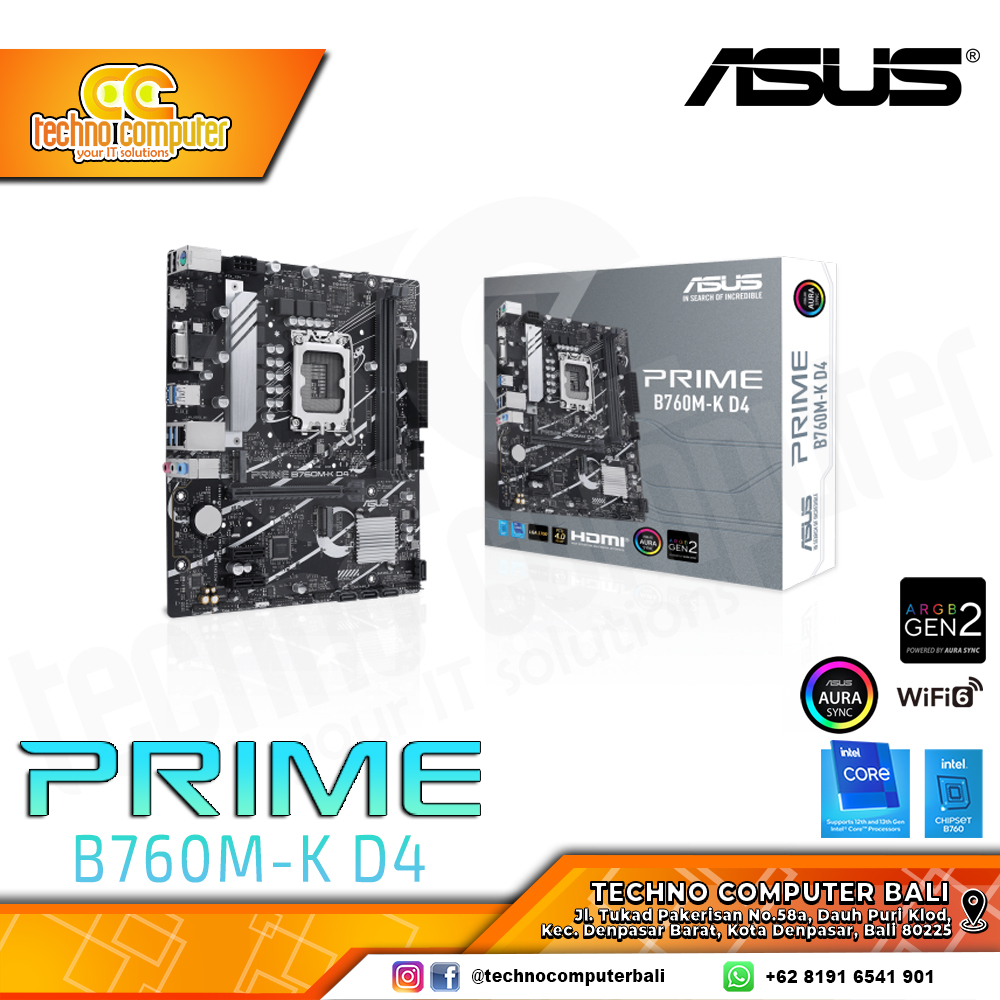

Motherboard ASUS PRIME B760M-K D4
90MB1DS0-M0UAY0
--------------------
Spesifikasi :

CPU : Intel Socket LGA1700 for 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset : Intel B760 Chipset
Memory : 2 x DIMM, Max. 64GB, DDR4 Non ECC, Un-buffered Memory

Storage :
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel B760 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports

Graphics :
1 x VGA port
1 x HDMI® port

Expansion Slots :
Intel 13 & 12 Gen Processor
1x PCIe 4.0x16 slot
Intel B760 Chipset
2x PCIe 4.0x1 slot

Back Panel I/O Ports :
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA ports
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

USB :
- Rear USB Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
- Front USB Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Ethernet : 1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Audio Features :
Realtek 7.1 Surround Sound High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
