𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model

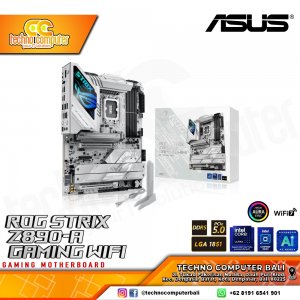

- ROG STRIX Z890-A GAMING WIFI

CPU
- Support Intel® Core™ Ultra Processors (Series 2)*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
- Intel® Z890 Chipset

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module

Graphics
- 1 x DisplayPort*
- 1 x HDMI™ port**
- 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs***

Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
- Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth® v5.4***

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

Accessories
Cables
- 2 x SATA 6Gb/s cables
Additional Cooling Kit
- 1 x Thermal pad for M.2 22110
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x ROG key chain
- 1 x ROG Strix stickers
- 5 x M.2 rubbers
Documentation
- 1 x Quick start guide

Operating System
- Windows 11 (22H2 later)

Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
