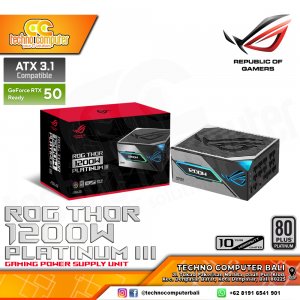

Model: ROG Thor 1200W Platinum III

Intel Specification: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
Dimensions: 190 x 150 x 86 mm
Efficiency: 80Plus Platinum
MTBF: >120,000 hrs @ 25°C
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS
AC Input Range: 100-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 30A 25A 100A 0.3A 3A
Combined Load: 125W 125W 1200W 3.6W 15W
Total Output: 1200W
Cable Connectors:
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Package Contents:
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 1 (750mm)
PCI-E Cable 1-to-1 x 4 (750mm)
SATA Cable 1-to-4 x 1 (400+120+120+120mm)
SATA Cable 1-to-3 x 1 (400+120+120mm)
Peripheral 1-to-3 x 2 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight: 2.37 KG (single PSU)
AURA SYNC: ARGB
Cybenetics Noise Level Certification: TBD
0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
