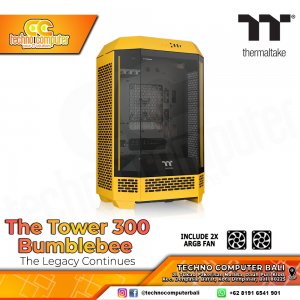

P/N: CA-1Y4-00SFWN-00
Series: The Tower
CASE TYPE: Micro Tower
Dimension (H x W x D): 551 x 342 x 281 mm
NET WEIGHT: 8.3 kg / 18.3 lbs.
PANEL: 3mm Tempered Glass x 3
Color: Bumblebee
MATERIAL: SPCC
COOLING SYSTEM
Top(exhaust):: 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2
Drive Bays: 3 x 3.5” or 3 x 2.5”
EXPANSION SLOTS: 4
MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU: Standard PS2 PSU (optional)
FAN SUPPORT
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
1 x 120mm
1 x 140mm
RADIATOR SUPPORT
Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE
CPU cooler height limitation: 210mm
VGA length limitation:
280mm(With power cover)
400mm(Without power cover)
PSU length limitation: 220mm
