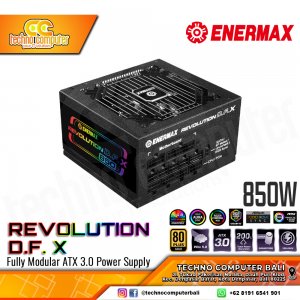

Enermax PSU Revolution D.F EXTREME ERT850EWT - 850Watt

REVOLUTION D.F. X 850 Watt 80 PLUS Gold Fully Modular ATX 3.0 Power Supply

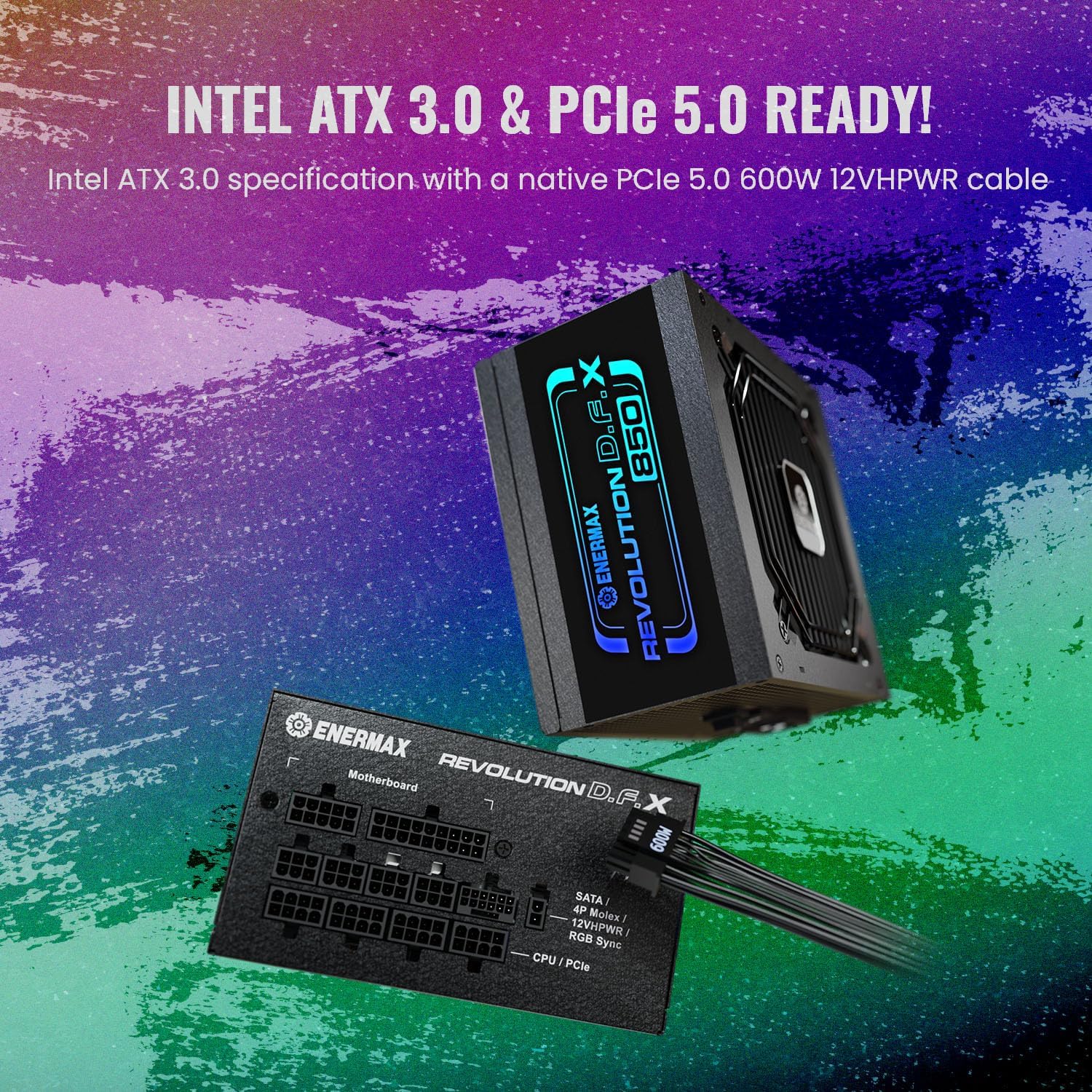

Intel ATX 3.0 & PCIe 5.0 Ready
Fully Modular 80 PLUS Gold Certified

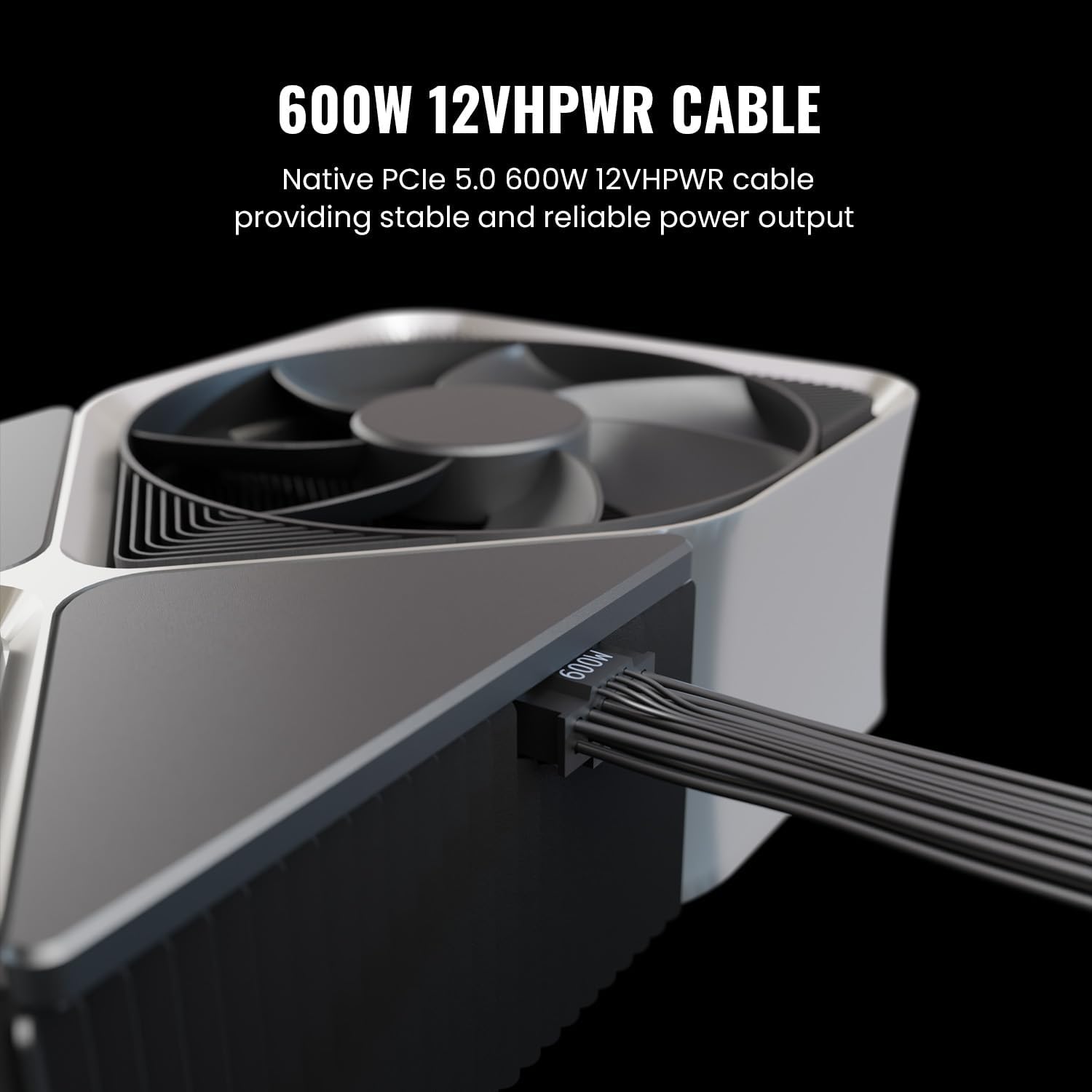

Native 600W PCIe 5.0 / Gen 5 12+4 Pin 12VHPWR Cable

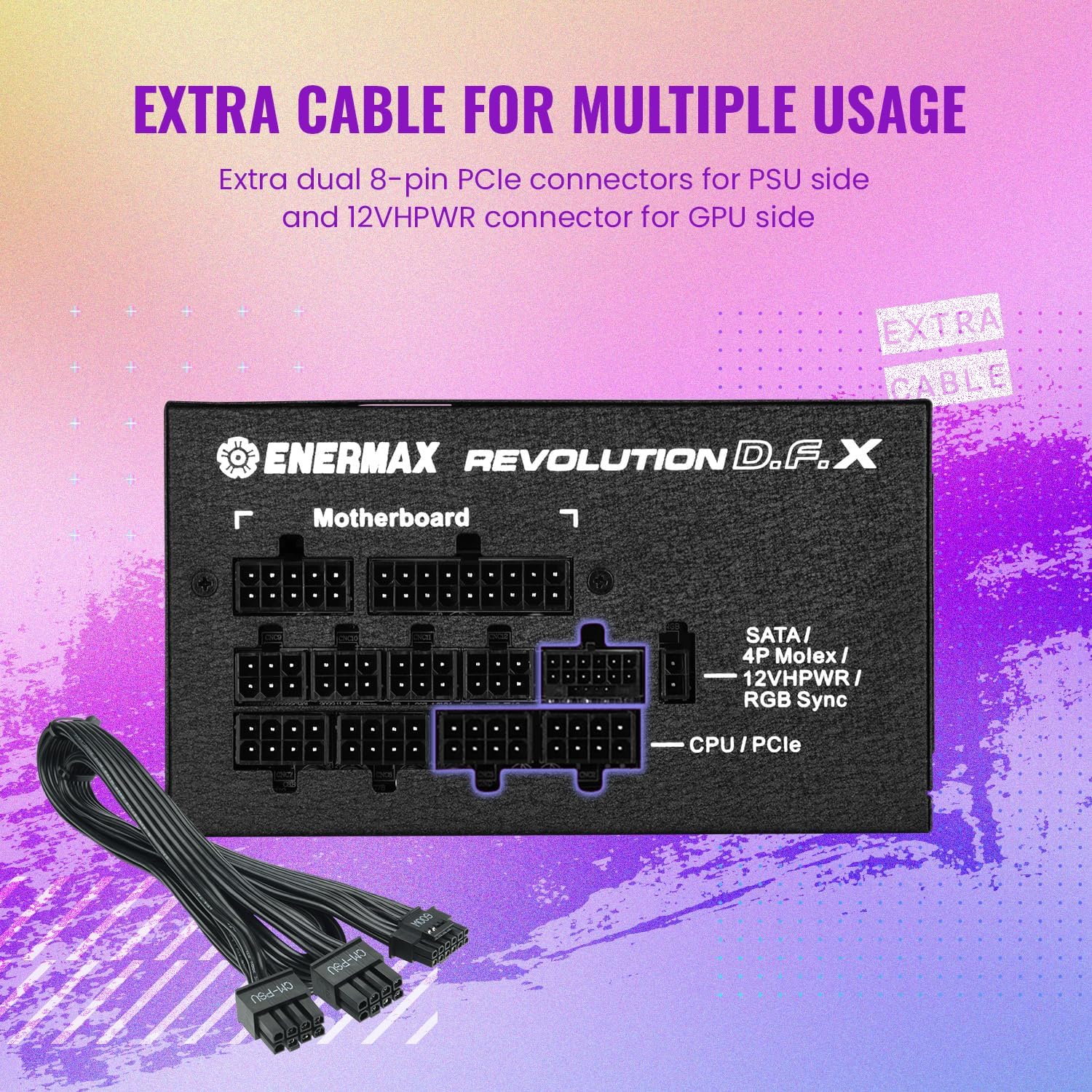

Extra Dual PCIe 8 Pin to 12+4 Pin 12VHPWR Cable

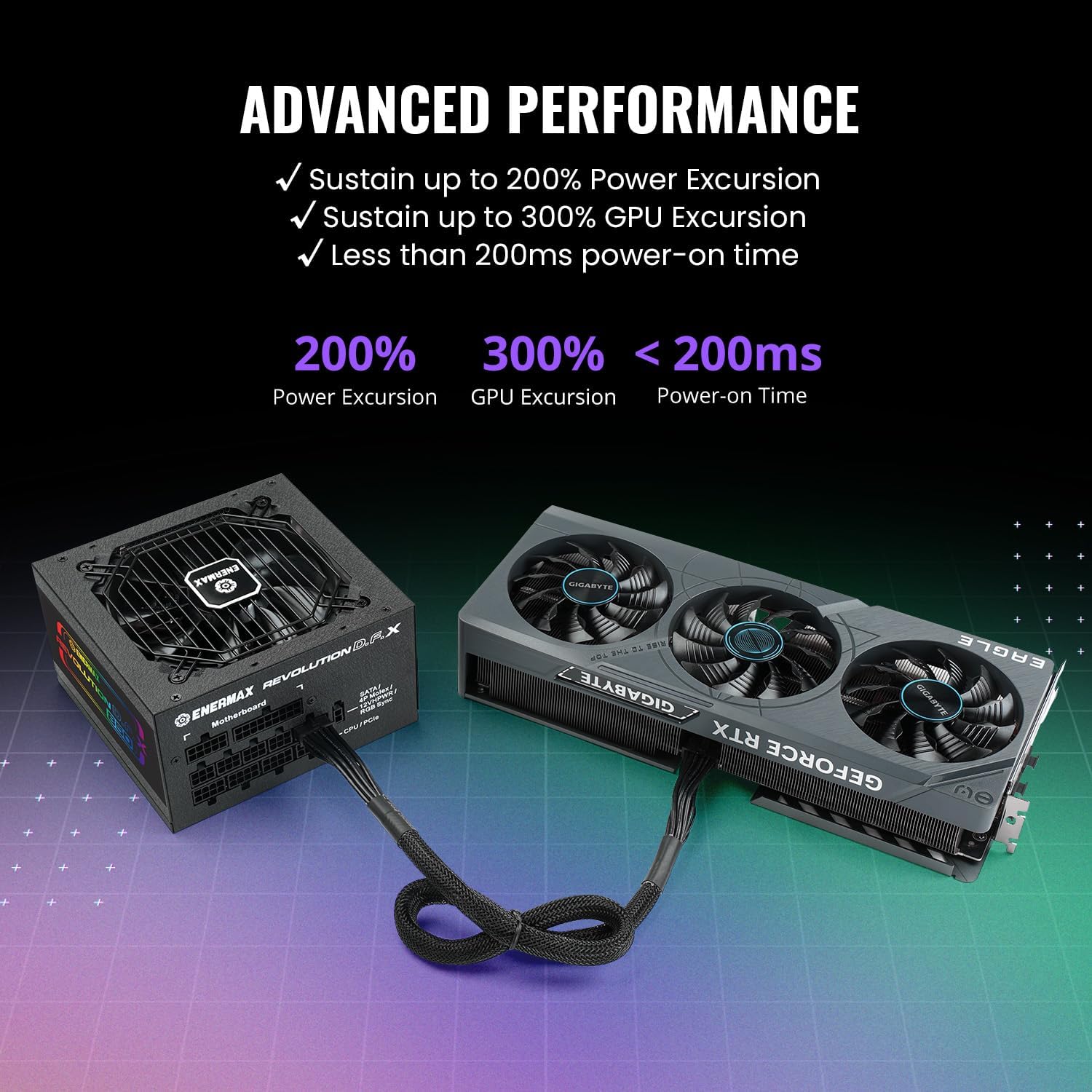

Up to 200% Power Excursion and Instant Power-on Time
6-pole Motor Fan Inside

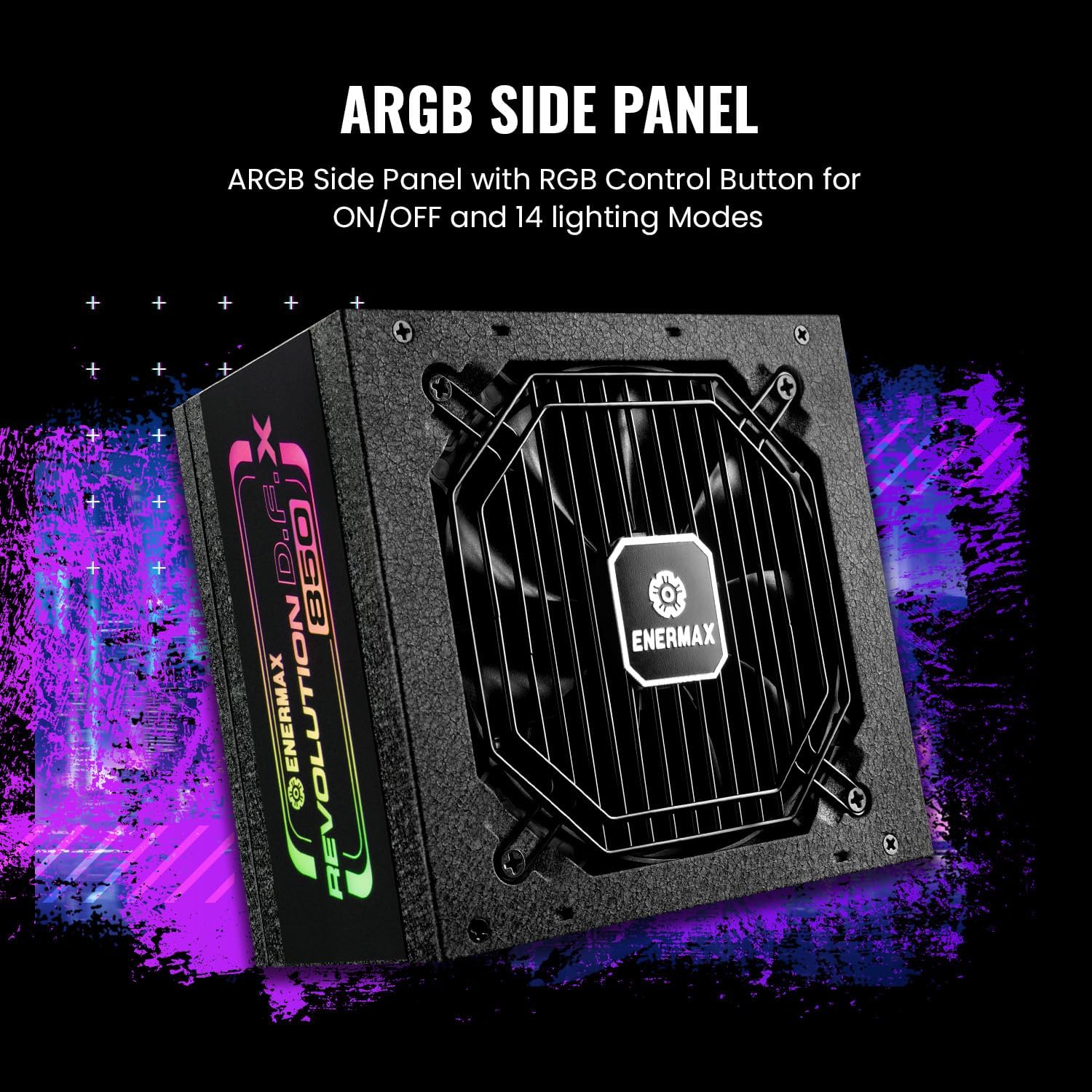

RGB Control Button for ON/OFF and 14 lighting Modes
Dust-Free Rotation Tech. for Ultra Cleanness
Semi-Fanless Tech. for Absolute Silence Under 20% Load

Speck :
WARRANTY : 10 YEARS WARRANTY
80 PLUS EFFICIENCY : Gold
MODULAR : Fully modular
CABLE TYPE : Black flat
TOTAL POWER (W) : 850
INPUT VOLTAGE (V) : 100-240
INPUT CURRENT (A) : 11-5.5
INPUT FREQUENCY (HZ) : 47-63
FAN SIZE (MM) : 12
OPERATING TEMPERATURE (C) : 40
MTBF (HOURS) : >100K
PROTECTION : OCP,OVP, UVP, OPP, OTP, SCP
DIMENSION (D X W X H), (MM) : 140 x 150 x 86
BOX DIMENSIONS (D X W X H), (MM) : 320 x 210 x 115

Output :

+3.3V(A) : 20
+5V(A) : 20
+12V1(A) : 70.5
-12V(A) : 0.3
+5VSB(A) : 3
COMBINED WATTAGE 12V (W) : 846
COMBINED WATTAGE 3.3V + 5V(W) : 130

Connector Cable :
Motherboard 24 (20+4) pin 1
[ 1x 65cm ]
CPU 4+4 Pin 2
[ 1 x 60cm ]
[ 1 x 70cm ]
12VHPWR 12+4 pin 1
[ 1x 60cm ]
PCIe 6+2pin 4
[ 2 x 65/15cm ]
2xPCIe 8pin-12VHPWR
Splitter Cable 1
[ 1x 60cm ]
SATA 12
[ 3 x 45/15/15/15cm ]
4P Molex 6
[ 2 x 50/15/15cm ]
2 x SATA + 4p Molex -
FDD 1
[ 1 x 10cm ]
