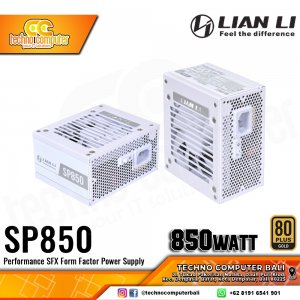

MODEL
- SP850

DIMENSIONS (D)
- 100 mm X (W)63.5mm X (H)125 mm

POWER SUPPLY DESIGN
- Fully modular

COLOR
- Black / White

MATERIAL
- Steel/brushed aluminum housing

FORM FACTOR
- SFX

CERTIFICATION
- 80 PLUS Gold

POWER SUPPLY DESIGN
- Fully modular

MAX. DC OUTPUT
- 850W

COMBINED +3.3V & +5V
- 100W

COMBINED +12V
- 840W

INPUT VOLTAGE
- 100-240Vrms

INPUT FREQUENCY RANGE
- 50Hz-60Hz

PFC
- Active PFC(PF)>0.90 at full load

EFFICIENCY
- 93.53% MAX

PROTECTIVE CIRCUIT
- OCP OVP OTP OPP SCP UVP

CONNECTORS
- 1 x 24/20-Pin motherboard connector (300mm) x1pcs
- 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs
- 1 x 8/6+2 Pin PCle connector (400mm) x1pcs
- 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs
- 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs
- 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs
- 1×12VHPWR connector cable without sideband contact (400mm) × 1pcs

NOISE LEVEL
- 17.1-40.6DBA

FAN RPM
- 1000-2800 RPM

BEARING TYPE
- HYB

WARRANTY
- 5 years by Cahaya Distribusi
