CPU & SOCKET
Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors: Intel® Core™ Processors. Please refer to CPU support list.
Intel® Hybrid Technology: Supported
Turbo Boost Max 3.0 Technology: Supported
Intel® Thermal Velocity Boost (TVB): Supported
Intel® Adaptive Boost Technology (ABT): Supported

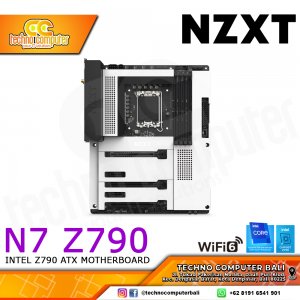

CHIPSET Intel®: Z790

MEMORY
DIMM Slots: 4
Max Memory Support: 128GB, DDR5
Memory Architecture: Dual-Channel
OC Frequency: 5000+(O.C.). Please refer to memory QVL.
Intel® Extreme Memory Profile (XMP) 3.0: Supported

EXPANSION SLOTS
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode: 2 (Supports NVMe SSD as boot disks)
PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*: 2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2: 1

STORAGE
M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1
M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode): 1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode): 1
SATA 6Gb/s ports: 4
Intel® Volume Management Device (VMD): Supported
NVMe SSD as boot disks: Supported

WIRELESS
Dual Band Wi-Fi 6E: Supported
Bluetooth: V5.2

AUDIO
Realtek®: ALC1220 Codec

REAR I/O
Wireless antenna SMA connectors: 2
HDMI™ port: 1
USB 2.0: 2
USB 3.2 Gen 2x2 Type-C port: 1
USB 3.2 Gen 2 ports: 2
USB 3.2 Gen 1 ports: 3
Clear CMOS button: 1
LAN (RJ45) port: 1
Audio jacks: 5
Optical S/PDIF Out port: 1

INTERNAL I/O
24-pin ATX power connector: 1
8+4-pin ATX 12V power connector: 1
4-pin CPU_FAN connector: 1
4-pin AIO_PUMP connector: 1
4-pin SYS_FAN connectors: 5
NZXT RGB LED connectors: 4
5V ARGB LED connector: 2
USB 2.0 header (Up to 4 USB 2.0 ports): 2
USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports): 1
USB 3.2 Gen2x2 front panel header (For USB Type-C): 1
Front panel audio connector: 1
Power button: 1
Reset button: 1
POST LEDs: 4

GENERAL
Operating System: Windows® 11/10 64-bit
Form Factor: ATX
Warranty: 3 years
