SPECIFICATION

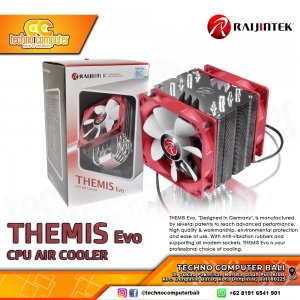

Product Name THEMIS Evo
Product Number 0P105245 [0R10A00076]
Dimension [W×D×H] 122×82×165 mm
Weight 614 g [Heat Sink Only]
Thermal Resistance 0.11 °C/W
Heat Sink
Base Material CPU Direct Contact [C.D.C.]
Fin Material Aluminum Alloy; Solder-less fins assembly; Nickel
Heat-pipe
SPEC Φ8mm
Q'ty 4 pcs
Fan
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7 V
Speed 1000~1500 RPM [PWM controlled]
Bearing Type Sleeve Bearing
Air Flow 43.8~65.68 CFM
Air Pressure 1.0~2.24 mmH2O
Life Expectance 40,000 hrs
Noise Level 24.53 dBA [Max.]
Connector 4 pin with PWM
APPLICATION
Intel® All Socket LGA 2066/201x/1366/115x/1200/775 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 CPU
