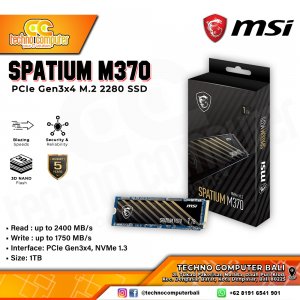

Model Name: SPATIUM M370 NVMe M.2
Capacity: 1TB
Controller: PHISON E13T
Flash Memory: 3D NAND
Form Factor: M.2 2280
Interface PCIe: PCIe Gen3x4, NVMe 1.3
Compatibility: PCIe Gen3 / Gen2 / Gen1
Dimensions: 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s): 2400
Sequential Write up to (MB/s): 1750
Random Read 4KB up to(IOPS): 215,000
Random Write 4KB up to (IOPS): 330,000
Maximum Operating Power (W): 3.6
Idle Power PS3 (mW): 20
Low Power L1.2 (mW): 2
Operating Temperatures: 0°C – 70°C
Storage Temperatures: -40°C – 85°C
Terabytes Written (TBW): 800
Mean Time Between Failure (MTBF): Up to 1,500,000 Hours
Limited Warranty: 5 Years, or the coverage for the maximum
TBW as stated, whichever comes first.
Advanced Features:
TRIM (Performance Optimization, OS support
required)
SMART (Self-Monitoring, Analysis and Reporting
Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data
Security)
